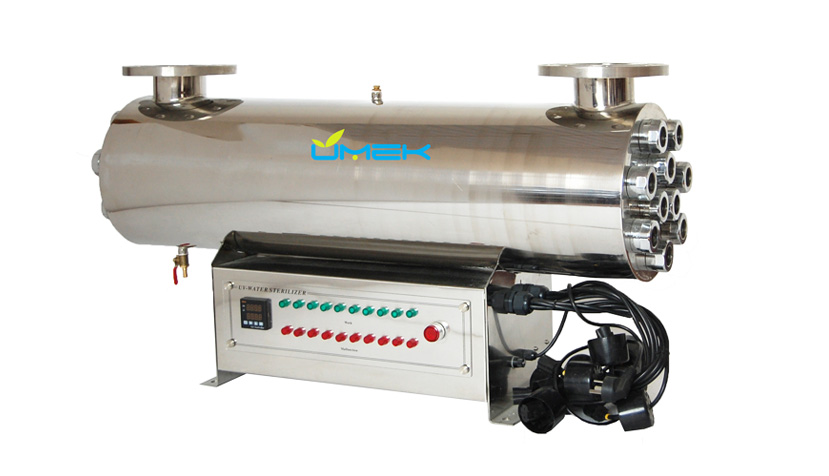

Ultra Violet System UV550W-1

Ultra Violet System UV550W-1

 Ultraviolet disinfection technology is very expeditious in destroying bacteria. UV energy can destroy bacteria and virus in just about 1-5 seconds. In order to reach the same disinfection effect, it costs about 30 minutes or more contact time by use other chemical methods (Chlorine, Ozone, Chlorine Dioxide).
inquiry Catalog download
  • Detail

Product

Ultra Violet System UV550W-1

Sterilization Principle and Operating Model

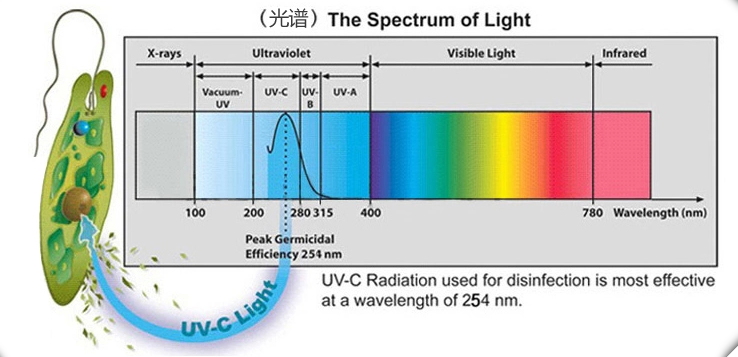

UV ray is an invisible light, locating at outer side of violet rays in the spectrogram. Therefore it is called as ultraviolet light, with wave length between 100nm and 400nm. UV ray can be divided into A, B, C and vacuum ultra violets as per the wave length.

Ultraviolet C is shortened to UV-C with wave length between 200nm and 280nm. UV-C with wave length of 253.7nm has the best sterilization effect, which is origin of modern UV-C.

Sterilization Principle and Operating Model

Through the studies, UV ray mainly kills the microbes (pathogene such as germs, virus, gemma of fungus, etc) by radiation damage and function destruction of nucleic acid for the purpose of sterilization. UV rays can cause the breakage of nucleic acid’s strand, inter-strand cross-linking and formation of photochemical products, etc. thus to change the biological activity of DNA and inhibit the reproduction of microbes. Therefore, this UV damage is also fatal.

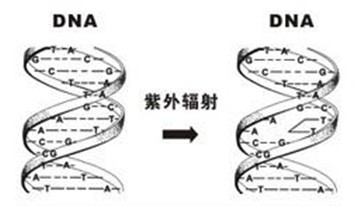

UV radiation

* UV radiation (UVC) can destruct the DNA of microbes irreversibly so that they can not reproduce until death finally.

Operating conditions

- Environmental conditions

  Temperature: 5℃~40℃

   Relative humidity: ≤90% (at ambient temperature 25℃)

- Power supply: 110V/ 220V/50Hz

- Max. operating pressure: ≤1.0MPa

- Water supply requirements

Indicator

Fe≤0.3 (mg/l)

Hydrogen sulfide≤0.05 (mg/l)

Suspended solid≤10 (mg/l)

Mn≤0.05 (mg/l)

Hardness≤120 (mg/l)

Chroma≤15 (degree)

Turbidity≤5 (NTU)

Water temperature5℃~60℃

The advantages of the ultraviolet disinfection

1. Ultraviolet disinfection technology is very expeditious in destroying bacteria.

UV energy can destroy bacteria and virus in just about 1-5 seconds. In order to reach the same disinfection effect, it costs about 30 minutes or more contact time by use other chemical methods (Chlorine, Ozone, Chlorine Dioxide).

2. Comprehensive range of disinfection.

Ultraviolet disinfection technology has been widely applied for efficiently destroying pathogenic microorganisms, bacteria and virus.

3. No secondary pollution.

Since no chemical is added, ultraviolet disinfection system will not cause secondary pollution for water and environment.

4. Low operational costs, simple operation and maintenance and economical prices.

5. Occupied small space

Occupied small space and easy assembly enable UV equipment to be installed at the place near water and power source. The ultraviolet equipment starts working after connecting the inlet and outlet of the Ultraviolet equipment and powering up.

Ultraviolet application

Pure Water: Drinking Water; Tap Water Factory; Food Process Water; Hospital and Pharmaceutical; Beer industry; Hotel; Lab ultrapure water; Cosmetics industry.

Circulating Water: Water Entertainment Facilities Swimming pool water; Landscape Water; Industrial Circulating Cool water; Spa; Micro-electronics.

Wastewater: Municipal Sewage; Hospital Sewage; Oilfield Reinjection Water; Urban Sewage; Reclaimed Water; Slaughter-house Wastewater; Sewage from ships.

Aquaculture: Hydroponic Shellfish; Fish Hatcheries; Farms; Aquarium.
